Description

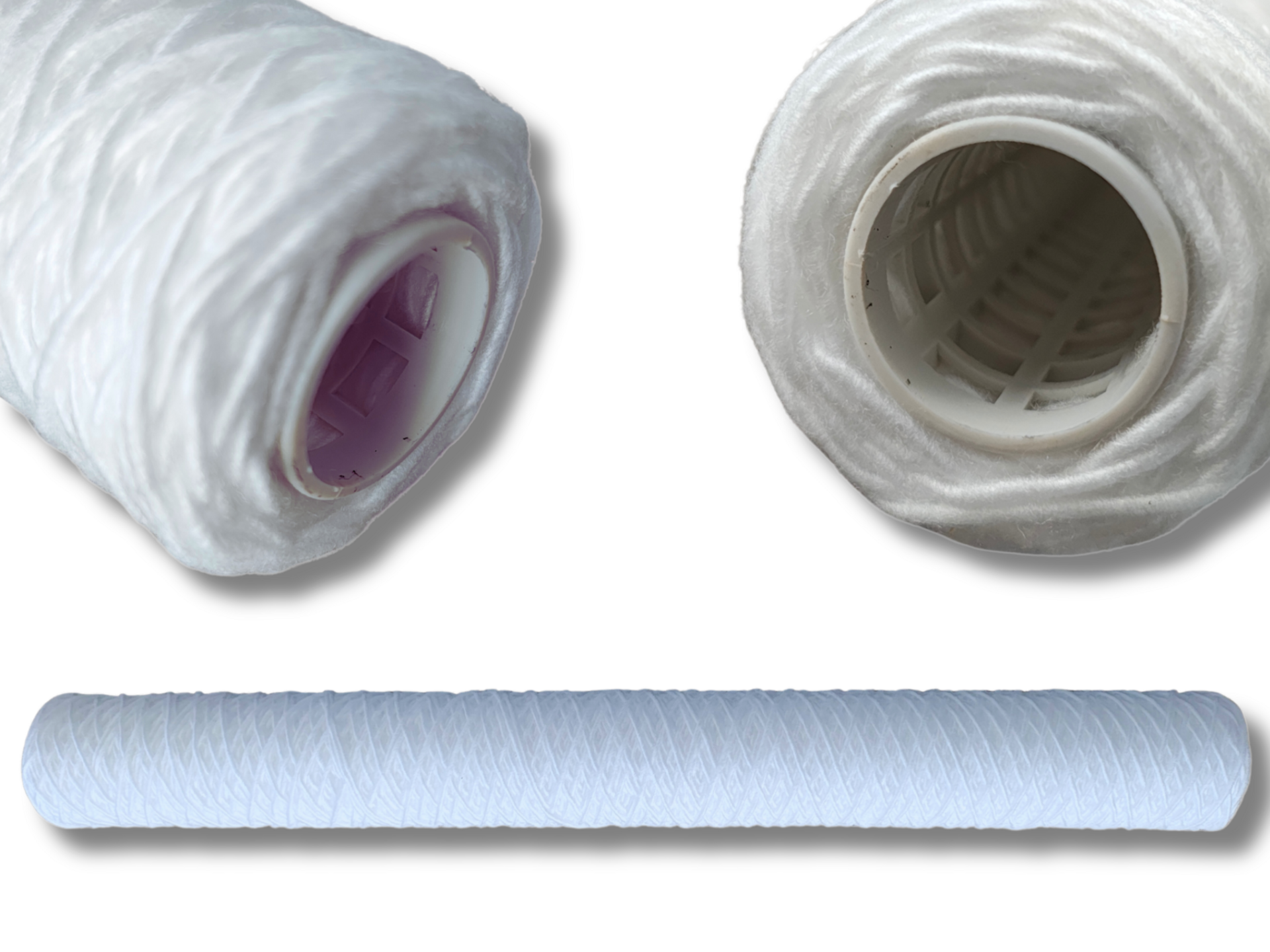

The 20" cord filter element, or fine filter element, is an essential component in water filtration systems where precise removal of fine particles and sediments is required. This type of filter element, designed for standard 20-inch filter housings, is known for its effectiveness in delivering clear and pure water for various applications. The construction of the cord filter element, in which a precisely wound thread or cord is applied around a sturdy core, creates a filtration matrix with specific pore sizes, allowing even the smallest impurities to be efficiently captured.
Key features and benefits:
- Superior fine filtration: The primary advantage of a cord filter element is its ability to remove very fine particles down to 20 microns. Depending on the winding and the material used, these filters can effectively trap sediment, sludge, rust particles, sand, and other micro-contaminants down to a specific micron level. This results in a significant improvement in water quality, both visually and in terms of purity.
- Graduated density: Many cord filter elements are designed with a gradual density. This means that the outer layers of the filter capture coarser particles, while the denser inner layers retain the finer sediments. This layered structure increases the filter's dirt-holding capacity and extends its service life by preventing the outer layers from clogging quickly.
- Protection of downstream equipment: By effectively removing fine particles, the cord filter element protects sensitive equipment installed further down the water supply system. This includes pumps, boilers, water softeners, reverse osmosis systems, and other devices that are susceptible to damage or reduced efficiency due to sediment buildup.
- Improved water quality for various applications: Whether for domestic drinking water, process water in industrial applications, or rainwater, the use of a fine filter element contributes to better water quality. This can result in improved drinking water quality, more efficient industrial processes, and longer equipment life.
- Relatively low costs: Compared to some other advanced filtration technologies, cord filter elements offer a cost-effective solution for fine filtration. They are relatively affordable to purchase and easy to replace.
- Various materials and micron ratings: Cord filter elements are available in various materials, such as polypropylene, cotton, and fiberglass, and with a wide range of micron ratings. This allows the user to choose the filter element that is most suitable for the specific application and the nature of the contaminants in the water.
- Easy installation and replacement: The standard 20-inch size ensures that these filter elements can be easily installed and replaced in standard 20-inch filter housings without the need for special tools or expertise.
Aspects to consider:
- Service life and replacement frequency: The service life of a cord filter element depends on the amount and nature of the sediments in the water. Regular inspection is important to determine when the filter is saturated and needs to be replaced to ensure optimal filtration. Reduced water pressure can be an indicator that the filter is becoming clogged.
- Micron rating selection: Choosing the right micron rating is crucial. A filter that is too coarse will not effectively remove fine particles, while a filter that is too fine can quickly become clogged if there is a lot of sediment in the water. An analysis of the water to be filtered can help determine the optimal micron rating.
- Material selection: The material chosen for the filter element can affect chemical compatibility with the water and temperature resistance. It is important to choose a material that is suitable for the specific water quality and operating conditions.
The 20" cord filter element, or fine filter element, is a reliable and efficient solution for removing fine particles and sediments from water. Thanks to the various materials and micron ratings available, it can be used in a wide range of applications, contributing to improved water quality and the protection of downstream equipment. Regular replacement of the filter element is essential to ensure consistent and effective filtration.
